How Does a Fire Pump Work? Fire Truck Pump Working Principle Explained

How Does a Fire Pump Work? Fire Truck Pump Working Principle Explained

July 10, 2026

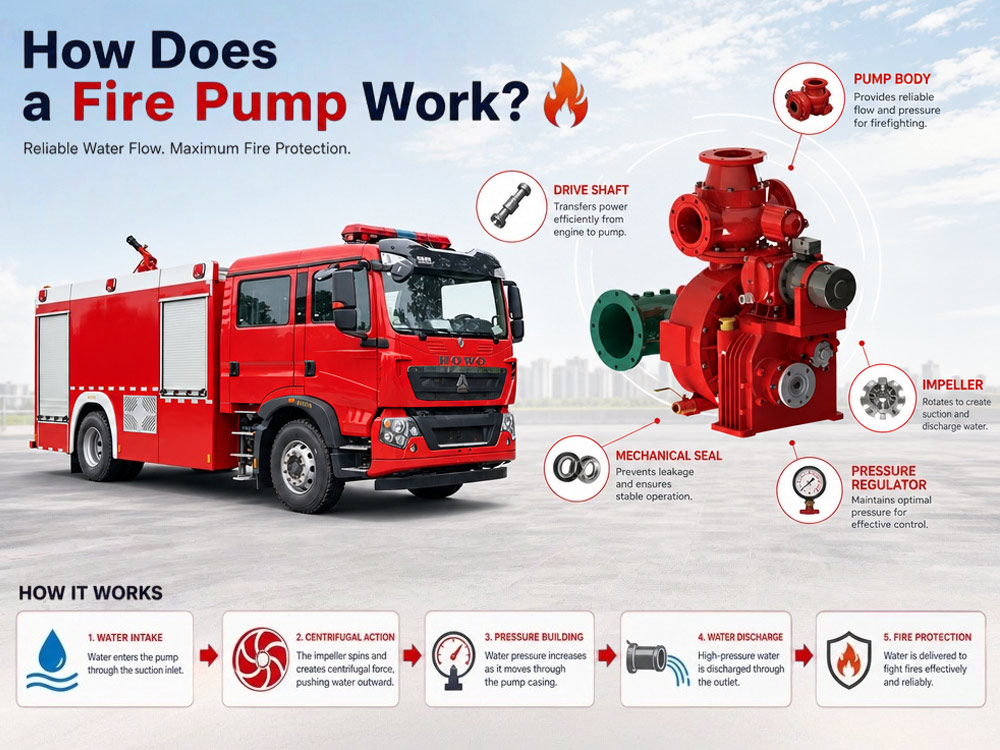

A fire pump is the heart of every fire truck's water delivery system. Whether responding to a structural fire, industrial emergency, airport incident, or wildland operation, the fire pump on a fire truck is responsible for delivering high-pressure water to hoses, fire monitors, and foam systems. Its centrifugal impeller design and PTO-driven system ensure stable pressure and high flow rates, directly increasing firefighting effectiveness by over 40%, while reducing response time by 3 times. It can be called the invisible guardian of firefighting operations and the technical cornerstone of modern emergency response.

Learn how a fire pump works, including its working principle, major components, water flow process, pressure generation, and applications. Discover how fire truck pumps deliver reliable water supply for firefighting and how to choose the right pump for your fire apparatus. Let's learn about it today.


» I. First, we need to know the three key components of the fire pump system:

1. Impeller: The rotating component that draws water in and throws it outward by centrifugal force. Typically made of bronze, stainless steel, or cast iron.

2. Pump casing: The housing that contains the impeller and directs water flow. Designed to convert velocity into pressure.

3. Power Take-Off (PTO): The mechanical connection that transfers engine power from the truck's transmission to the fire pump.


» II. After knowing the key components, the core working principle of the fire pump is as follows:

1. Power is transferred from the engine through the PTO

The truck engine drives the PTO, which connects to the pump shaft. When the operator engages the PTO, engine power is redirected to spin the pump impeller at high speed.

2. The impeller begins rotating

The impeller spins at 1,500–2,500 RPM, drawing water into the pump through the suction inlet. The spinning impeller blades create a low-pressure zone at the center, pulling water in from the onboard tank, hydrant, or natural water source.

3. Centrifugal force increases water pressure

As the impeller spins, it throws water outward by centrifugal force. The water's velocity increases as it moves from the center to the outer edge of the impeller. The pump casing then converts this velocity into pressure, forcing high-pressure water out through the discharge outlet.

4. High-pressure water exits the discharge outlet

Pressurized water (typically 0.8–1.2 MPa) exits through the discharge outlet and is delivered to fire hoses, fire monitors, or foam proportioning systems for firefighting operations.


» III. Where does the fire pump get water?

The fire pump can draw water from three sources:

Onboard water tank: The primary water source for initial attack. Typical capacity: 2,000–12,000 liters. Provides immediate water supply upon arrival.

Fire hydrant: Connected through supply hoses. Provides continuous water supply for extended operations. Pressure from hydrant helps the pump maintain flow.

Natural water source (drafting): Lakes, rivers, ponds, or swimming pools. The pump uses a priming system to remove air from the suction hose before drafting. Maximum theoretical lift at sea level: approximately 10 meters (33 feet). Effective drafting depth: typically 7–8 meters.

Drafting process:

  1. Connect rigid suction hose to pump intake

  2. Submerge strainer at least 2-3 feet below water surface

  3. Engage primer to remove air from hose and pump

  4. Vacuum builds, atmospheric pressure pushes water up

  5. Water fills the pump, then the centrifugal pump pressurizes it


» IV. System Components and Core Functions of the Fire Pump:

Suction inlet: Where water enters the pump. Typical size: DN100–DN150. Equipped with strainer to prevent debris from entering.

Discharge outlet: Where pressurized water exits. Typical size: DN65–DN80 (standard outlets). Equipped with valves to control flow to hoses or monitors. Multiple outlets allow simultaneous use.

Impeller: The rotating component that creates water flow. Converts mechanical energy into kinetic energy. Typically made of bronze (corrosion-resistant), stainless steel (durable, long-lasting), or cast iron (cost-effective for standard applications).

Pump casing: The housing that directs water flow. Designed to convert velocity into pressure. Common designs: volute casing (spiral shape for smooth flow) and diffuser casing (for higher efficiency).

Primer system: Removes air from the pump and suction hose before drafting. Types include:

  • Vacuum primer: Rotary vane or piston design. Fast and efficient. Most common in modern fire trucks.

  • Exhaust primer: Uses engine exhaust to create vacuum. Simple but less effective.

  • Electric primer: Motor-driven. Can prime without pump rotation. Protects mechanical seal from dry running damage.

Pressure relief valve: Prevents over-pressurization. Opens when pressure exceeds set limit. Protects hoses, pump, and firefighters.

Pressure governor: Automatically maintains set pressure. Adjusts engine RPM to compensate for flow changes. Reduces operator workload. Available in pressure mode (maintains preset pressure) and RPM mode (maintains preset engine speed).

PTO (Power Take-Off): The connection between engine and pump. Transfers engine power to drive the pump. Fire trucks typically use sandwich PTO (mounted between engine and transmission) for full power output.


» V. Pump Selection by Application:

1. Fire pump types comparison



Pump Type Advantages Typical Applications
Single-stage centrifugal pump High flow, simple design, cost-effective Municipal fire trucks
Two-stage fire pump Higher pressure, switchable modes High-rise firefighting, long hose lays
Midship fire pump Better balance, stable operation Standard fire apparatus
Rear-mounted fire pump Easier maintenance, better cooling Airport and industrial trucks

2. Fire pump vs. standard water pump

Comparison Item Fire Pump Standard Water Pump
Working pressure High (0.8–2.5 MPa) Lower (0.2–0.6 MPa)
Flow rate High (1,200–6,000 L/min) Moderate (500–2,000 L/min)
Continuous operation Yes (designed for extended use) Depends on model
PTO driven Yes Usually not
Firefighting standard compliance Yes (NFPA, EN, GB certified) No
Application areas Firefighting and rescue Industrial, agricultural, domestic water supply


3. Application scenario recommendations



Application Recommended Pump Reason
Municipal firefighting Single-stage (1,200–3,000 L/min) Cost-effective, sufficient for most fires
High-rise buildings Two-stage (2,000–4,000 L/min) Higher pressure for vertical lift
Petrochemical plants Two-stage (3,000–6,000 L/min) High flow, pressure for industrial fires
Airport crash rescue Rear-mounted (4,000–6,000 L/min) High flow, easier maintenance
Wildland firefighting Single-stage (1,000–2,000 L/min) Lightweight, portable

» VI.How does the fire pump build pressure?

The fire pump builds pressure through centrifugal force. When the impeller rotates, it draws water into the center and throws it outward at high speed. The pump casing converts this high-velocity water into pressure by slowing it down.

Factors affecting pressure:

  • Impeller speed: Faster rotation = higher pressure. Impeller speed is directly proportional to engine RPM.

  • Engine RPM: Higher engine speed = faster impeller = higher pressure. Operators control pressure by adjusting engine throttle or using the pressure governor.

  • Pump design: Two-stage pumps can achieve higher pressure than single-stage pumps by using two impellers in series.

  • Pipe diameter: Smaller diameter = higher pressure but lower flow. Larger diameter = lower pressure but higher flow. The operator must balance pressure and flow based on the firefighting task.

  • Water source: Adequate water supply is essential for maintaining pressure. Insufficient supply causes pressure to drop.


» VII.Common fire pump problems and solutions

1. Pump won't prime

Possible causes: Air leak in suction hose, clogged strainer, primer not working.

Solutions: Check and tighten all suction hose connections; clean the strainer; inspect the primer system (vacuum pump or electric primer) and repair if needed.

2. Low water pressure

Possible causes: Clogged strainer, insufficient engine RPM, worn impeller, air in system.

Solutions: Clean the strainer; increase engine speed; inspect impeller for wear and replace if needed; check for air leaks and prime again.

3. Cavitation

Formation: Cavitation occurs when the pump does not receive enough water. The impeller spins in a mixture of water and vapor bubbles. When these bubbles collapse, they create shock waves that damage the impeller and cause severe pressure fluctuation.

How to avoid: Never run the pump faster than the water supply can deliver; monitor intake pressure; reduce pump speed if vacuum is too high; ensure strainer is not clogged.

4. Water leakage

Check items: Check all seals and gaskets; inspect for cracks in the pump casing; ensure drain valves are closed; replace worn seals immediately.

5. Overheating

Causes: Pump running dry, insufficient cooling, prolonged operation without water flow.

Maintenance tips: Never run the pump without water; ensure cooling lines are clear; allow the pump to cool between operations; check the thermal relief valve regularly.


» VIII. Real case study: Municipal fire department pump upgrade

Background:

A municipal fire department with a fleet of aging fire trucks needed to upgrade the pump systems on three frontline engines. The existing pumps struggled to maintain pressure during high-rise firefighting operations and frequently required repairs.

Challenge:

  • Pressure unstable at heights above 50 meters

  • Slow drafting from natural water sources (priming time >45 seconds)

  • Low flow rate at high pressure

  • Frequent seal failures and impeller wear

Solution:

  • CB10/60 fire pump (60 L/s @ 1.0 MPa)

  • Electric vacuum primer (improves priming speed)

  • Automatic pressure governor (maintains stable pressure)

  • Upgraded pump seals and bearings

  • New suction hoses with larger strainers

Results:



Metric Before After
Pressure at 50m height 0.6 MPa 0.9 MPa
Priming time 45 seconds 18 seconds
Flow rate at full pressure 40 L/s 55 L/s
Seal replacements per year 4 0

Pressure increased by 25%, drafting time reduced by 35%, firefighting efficiency improved significantly, and maintenance costs dropped by 60%. The department reported faster response times and more reliable pumping during large-scale fires.


» IX. How to choose the right fire pump

1. Determine required flow rate



Application Recommended Flow Rate
Municipal firefighting 30–60 L/s
Industrial parks 60–100 L/s
Airport crash rescue 100+ L/s
Wildland firefighting 20–40 L/s
High-rise buildings 40–80 L/s

2. Determine required pressure



Application Recommended Pressure
Municipal firefighting 0.8–1.0 MPa
Industrial parks 1.0–1.2 MPa
Petrochemical plants 1.2–1.4 MPa
Airport crash rescue 1.0–1.2 MPa
High-rise buildings 1.5–2.5 MPa

3. Consider water source

  • Hydrant supply: Single-stage pump is sufficient. No priming required.

  • Onboard tank: Single-stage or two-stage. Priming required for drafting.

  • Natural water (drafting): Requires vacuum primer. Two-stage for high lift.

4. Fire truck size and configuration



Chassis Recommended Pump
4×2 Single-stage, 1,200–2,000 L/min
4×4 Single-stage, 2,000–3,000 L/min
6×4 Two-stage, 3,000–4,500 L/min
8×4 Two-stage, 4,000–6,000 L/min

» X. Frequently Asked Questions (FAQ)

Q: What is a fire pump?

A: A fire pump is a centrifugal pump driven by the truck engine through a PTO system. It draws water from onboard tanks, hydrants, or natural water sources, increases water pressure by spinning an impeller, and delivers high-pressure water to hoses or fire monitors for firefighting operations.

Q: How does a fire pump increase water pressure?

A: The impeller spins at high speed (1,500–2,500 RPM), drawing water into the center and throwing it outward by centrifugal force. The pump casing converts this high-velocity water into pressure by slowing it down. Higher impeller speed = higher pressure.

Q: Is a fire pump the same as a standard water pump?

A: No. Fire pumps are designed for higher pressure (0.8–2.5 MPa), higher flow rates (1,200–6,000 L/min), and continuous emergency operation. Standard water pumps operate at lower pressure and are not designed for firefighting or PTO-driven systems.

Q: What powers a fire truck pump?

A: The fire truck engine powers the fire pump through a Power Take-Off (PTO) system. When the operator engages the PTO, engine power is redirected to spin the pump impeller. No separate engine is required.

Q: Why does a fire pump need a primer?

A: A primer removes air from the pump and suction hose before drafting from a lake, river, or pond. Centrifugal pumps cannot move water if there is air in the system. The primer creates a vacuum, allowing atmospheric pressure to push water into the pump.

Q: What is the difference between a single-stage and a two-stage fire pump?

A: A single-stage pump has one impeller and provides high flow at moderate pressure. A two-stage pump has two impellers in series and can provide higher pressure. Two-stage pumps can switch between volume mode (high flow) and pressure mode (high pressure).

Q: Can a fire pump draw water from a river?

A: Yes. A fire pump can draw water from rivers, lakes, ponds, and swimming pools through a process called drafting. The primer removes air from the suction hose and pump, creating a vacuum. Atmospheric pressure pushes water up into the pump. Maximum practical lift: approximately 7–8 meters.

Q: What causes fire pump cavitation?

A: Cavitation occurs when the pump does not receive enough water. The impeller spins in a mixture of water and vapor bubbles. When these bubbles collapse, they create shock waves that damage the impeller. Cavitation is caused by running the pump faster than the water supply can deliver, clogged strainers, or excessive suction lift.

Q: How often should a fire pump be serviced?

A: Daily checks (noise, vibration, leaks) weekly tests (primer, pressure governor), monthly inspections (impeller, bearings, relief valve), yearly full flow tests and hydrostatic pressure testing. Regular maintenance prevents unexpected failures during emergencies.

Q: How do I choose the right fire pump for my fire truck?

A: Consider required flow rate (based on fire risks), pressure requirements (based on building heights), water source (hydrant, tank, or natural), fire truck chassis (4×2, 4×4, 6×4, 8×4), pump brand and reliability, and maintenance and service support. The pump must match the vehicle's engine power and PTO configuration.

» XI. Key Takeaways

  • Fire pumps use centrifugal force to increase water pressure. The impeller draws water in and throws it outward, converting velocity into pressure.

  • Most fire truck pumps are powered through a PTO system (Power Take-Off). Engine power is redirected to the pump, no separate engine is required.

  • Water can come from onboard tanks, hydrants, or open water sources. Drafting from natural sources requires a primer to remove air from the suction hose.

  • Priming systems remove air before drafting from natural water sources. Vacuum primers are most common, with electric primers offering protection for mechanical seals.

  • Pump performance depends on flow rate, pressure, impeller size, and engine power. Matching the pump to the firefighting task is critical.

  • Proper maintenance (daily, weekly, monthly, yearly) improves reliability and service life. Regular testing prevents unexpected failures during emergencies.

  • Understanding pump operation helps buyers choose the right specifications for their fire truck. The pump must match the chassis, PTO, and firefighting requirements.
