How Does a Fire Truck PTO (Power Take-Off) Work?

The fire truck PTO (Power Take-Off) is a power transmission device that transfers engine power to the fire pump. When the firefighter activates the PTO, mechanical power from the engine is transmitted through the transmission and PTO to the fire pump — this is the core working principle of how a fire fighting truck PTO system operates — enabling the pump to deliver high-pressure, high-flow water or foam without the need for a separate auxiliary engine.

Modern fire trucks typically use side-mounted PTO or full power PTO systems. These offer stable power output, convenient operation, and low maintenance costs, making them an essential component of the fire truck's firefighting system.

» I. What Is a Fire Truck PTO?

1. PTO Definition

PTO (Power Take-Off) is a critical component in the fire truck's power system. It is a gear transmission device installed between the engine and the transmission, designed to "divert" a portion of mechanical power from the vehicle's engine or transmission to the fire pump or other auxiliary equipment, without affecting the vehicle's normal driving capability.

The fire truck engine is originally responsible only for driving the wheels. However, once the fire truck arrives at the fire scene, the wheels no longer need power, while the fire pump requires power to draw and pressurize water. The PTO is the device that accomplishes this "power switch."

2. What Does Power Take-Off Mean?

Power Take-Off (PTO) literally means "power output device."

On a fire truck, it refers to extracting rotational power from the engine flywheel or transmission gears through gear engagement, and delivering it to the fire pump or other auxiliary equipment.

Its name describes its function:

• Engine = Power source

• PTO = Power distributor

• Fire pump = Power consumption end

Therefore, the PTO is the bridge connecting the "power source" and the "firefighting system."

» II. Why Does a Fire Truck Need a PTO?

The core reason fire trucks must be equipped with a PTO is that firefighting operations require continuous, stable, high-power output that cannot rely on the vehicle's driving state.

Main reasons:

1. Provides continuous firefighting power

The fire pump needs to run for extended periods during firefighting operations. The PTO allows the engine to continuously drive the fire pump at idle or fixed RPM, ensuring stable water pressure and flow.

2. Improves power utilization efficiency

Without a PTO, a separate auxiliary engine would be required to drive the fire pump, which would increase:

• Cost

• Maintenance complexity

• Risk of failure

• Space occupation

The PTO directly utilizes the vehicle's engine power, improving overall efficiency.

3. Supports multiple firefighting systems

Modern industrial fire trucks may include not only water pumps but also:

• Foam systems

• Dry powder systems

• High-pressure water systems

• Remote-controlled fire monitors

Without a PTO, there are only two solutions:

• Install a separate engine to drive the pump → increases weight, cost, maintenance points, and occupies space

• Keep the pump permanently connected to the transmission → pump stops when vehicle stops, unable to pump water on site

The PTO solves both problems at once:

» III. How Does a Fire Truck PTO Work?

The PTO is essentially a "power distribution and conversion system" that transforms vehicle driving power into firefighting operational power.

From an engineering perspective, the complete power path is:

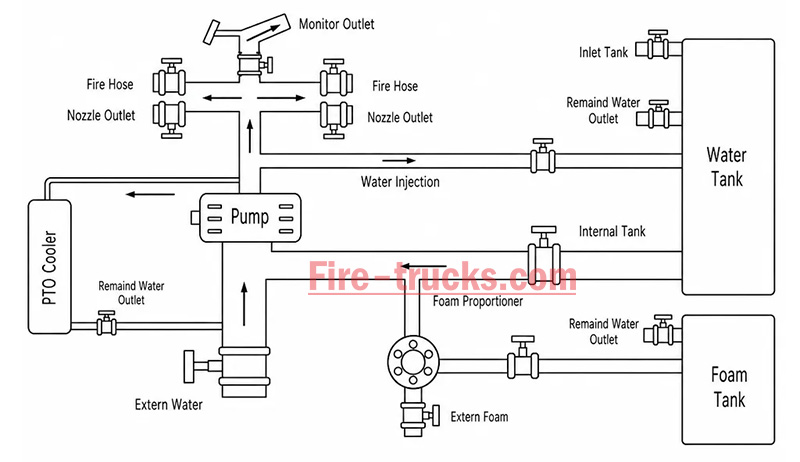

Engine → Transmission → PTO → Drive Shaft → Fire Pump → Fire Monitor/Hose System

The PTO's working principle can be summarized in three key stages: power take-off, engagement, and transmission.

1. Power Take-Off — Where Does the Power Come From?

The PTO draws power from the engine. Depending on the installation position, the power take-off method differs:

2. Engagement — How Is Power Connected?

After the driver presses the PTO switch in the cab, the engagement mechanism activates:

Operation sequence:

Press PTO switch → Solenoid/cylinder actuates → Shift fork pushes sliding gear → Meshes with flywheel or transmission gear → Power connected

3. Transmission — How Does Power Reach the Pump?

After the PTO output shaft begins rotating, power is transmitted through the drive shaft to the fire pump:

PTO output shaft rotates → Drive shaft → Fire pump input shaft → Pump impeller rotates → Water is pressurized and discharged

4. Complete Working Sequence

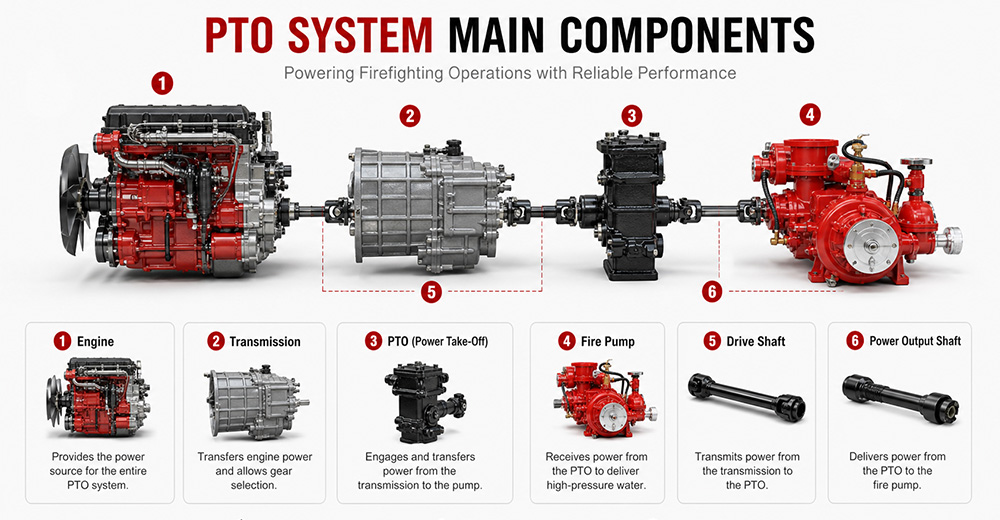

» IV. Main Components of the PTO System

The fire truck PTO system is a complete power transmission chain, with multiple components working together to transfer engine power to the fire pump. The system can be broken down into six core components:

1. Engine

The engine is the power source of the PTO system and the heart of the entire fire truck.

• Function: Generates raw rotational power, driving the flywheel or crankshaft.

• Power output: Typically 300–600 HP (depending on chassis model and configuration).

• Relationship with PTO: The PTO draws power from the engine flywheel or crankshaft — it is the starting point of power.

• Key characteristic: Engine RPM directly affects PTO output speed and the fire pump's water discharge capability. Fire trucks are typically equipped with high-power diesel engines, which not only drive the vehicle but also provide ample power reserve for the fire pump. After PTO engagement, the operator can control pump discharge pressure by adjusting engine RPM.

2. Transmission

The transmission is responsible for power delivery and speed matching.

• Function: Receives engine power and adjusts speed and torque through different gear combinations.

• Relationship with PTO: Side-mounted PTO draws power from internal transmission gears; sandwich PTO is installed at the front of the transmission.

• Key characteristic: Transmission gear position does not affect PTO output speed — PTO operates independently of gear selection.

• Two power take-off positions:

  • Transmission side window take-off: PTO mounted on transmission side, drawing power from countershaft or intermediate shaft gears; common on medium-duty fire trucks.

  • Transmission rear-end take-off (sandwich): PTO installed between engine and transmission, drawing power directly from the flywheel, enabling full power output.

3. PTO Unit

The PTO is the core of the entire system, responsible for "extracting" power from the engine and delivering it to the fire pump.

• Function: Extracts power from the engine or transmission and converts it to the speed and torque suitable for the fire pump.

• Installation position: Transmission side (side-mounted) or between engine and transmission (sandwich).

• Key characteristic: Determines power transmission efficiency, speed matching, and operational convenience.

4. Drive Shaft

The drive shaft is the "power bridge" connecting the PTO and the fire pump.

• Function: Transmits rotational power from the PTO output shaft to the fire pump input.

• Structure: Typically consists of a metal shaft tube, universal joints, and splined connections.

• Key characteristic: Must be precisely aligned to avoid vibration; universal joints allow angular compensation.

5. Fire Pump

The fire pump is the final load of the PTO system, responsible for converting mechanical energy into water pressure energy.

• Function: Receives rotational power from the PTO, drives the impeller to rotate, draws water in, and discharges it under high pressure.

• Type: Centrifugal pump (single-stage, two-stage, or multi-stage).

• Typical flow rate: 20 L/s – 180 L/s (1,200 – 6,000 L/min).

• Typical pressure: 1.0 – 2.5 MPa (10 – 25 bar).

6. PTO Control System

The PTO control system is the "command center" between the driver and the PTO system, responsible for engagement, disengagement, safety protection, and status indication.

• Function: Controls PTO engagement and disengagement, monitors system status, and provides safety protection.

• Operating location: Cab interior (primary control) and pump panel (auxiliary control).

• Control methods: Manual cable, electric solenoid, pneumatic.

Specific control functions:

(1) PTO Engagement Control

The operator presses the PTO switch (electric solenoid/pneumatic) or pulls the lever (manual) in the cab. The control system sends a signal to engage the PTO's internal gears with the power source. After successful engagement is confirmed, an indicator light illuminates, allowing the operator to increase engine RPM.

(2) PTO Disengagement Control

The operator presses the switch again or resets the lever. The control system cuts the signal, and the PTO gears disengage. After disengagement is confirmed, the indicator light turns off.

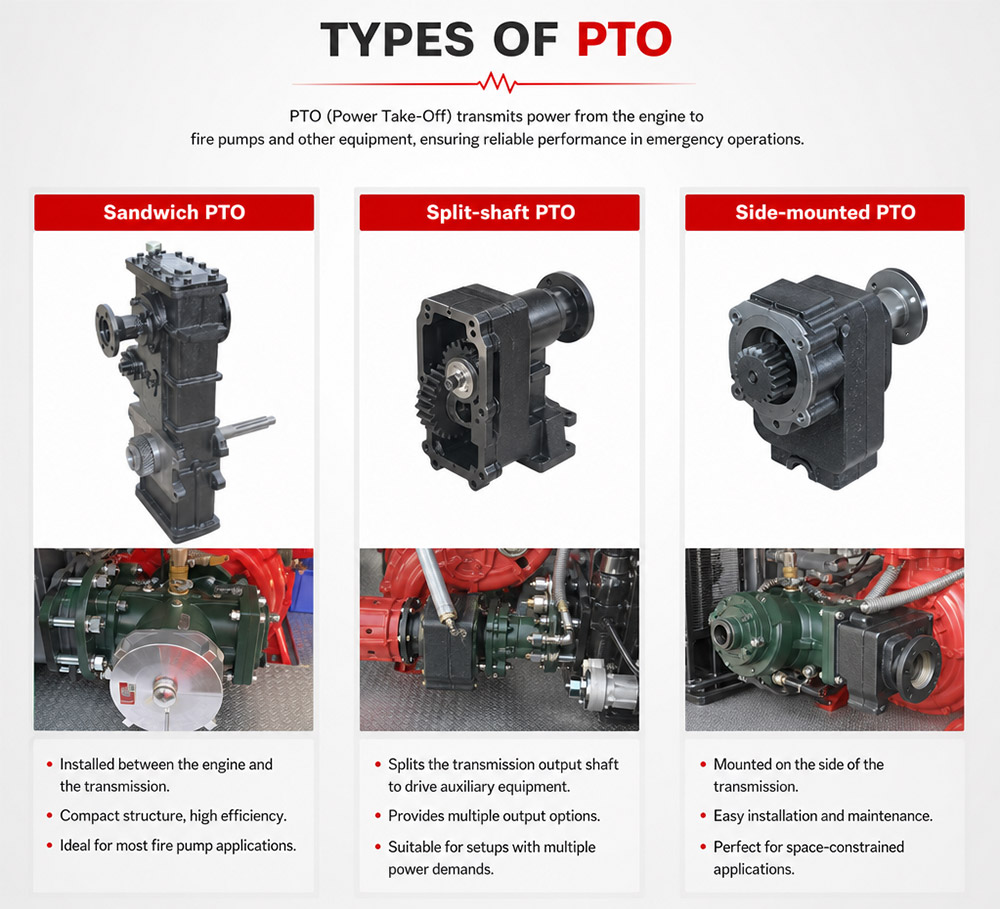

» V. Different Types of Fire Truck PTO

1. Comparison of Three PTO Types

2. Advantages and Disadvantages of Each PTO Type

Sandwich PTO

• Advantages: Full power output (≥90%), supports "pumping while driving" (dual-function), high transmission efficiency, easy lubrication.

• Disadvantages: Higher cost, complex installation, requires modification to the engine-transmission connection.

Split-shaft PTO

• Advantages: Full power output, no additional space required, high reliability, good dynamic balance, can replace auxiliary engine to drive large pumps.

• Disadvantages: Requires cutting the original driveshaft, installation position selection must consider driveshaft angle and length compensation.

Side-mounted PTO

• Advantages: Low cost, simple installation, can draw power directly from the transmission side.

• Disadvantages: Only partial power available, lower output torque, cannot drive high-power fire pumps, mainly used for low-speed, low-power equipment.

» VI. How Does the PTO Drive the Fire Pump?

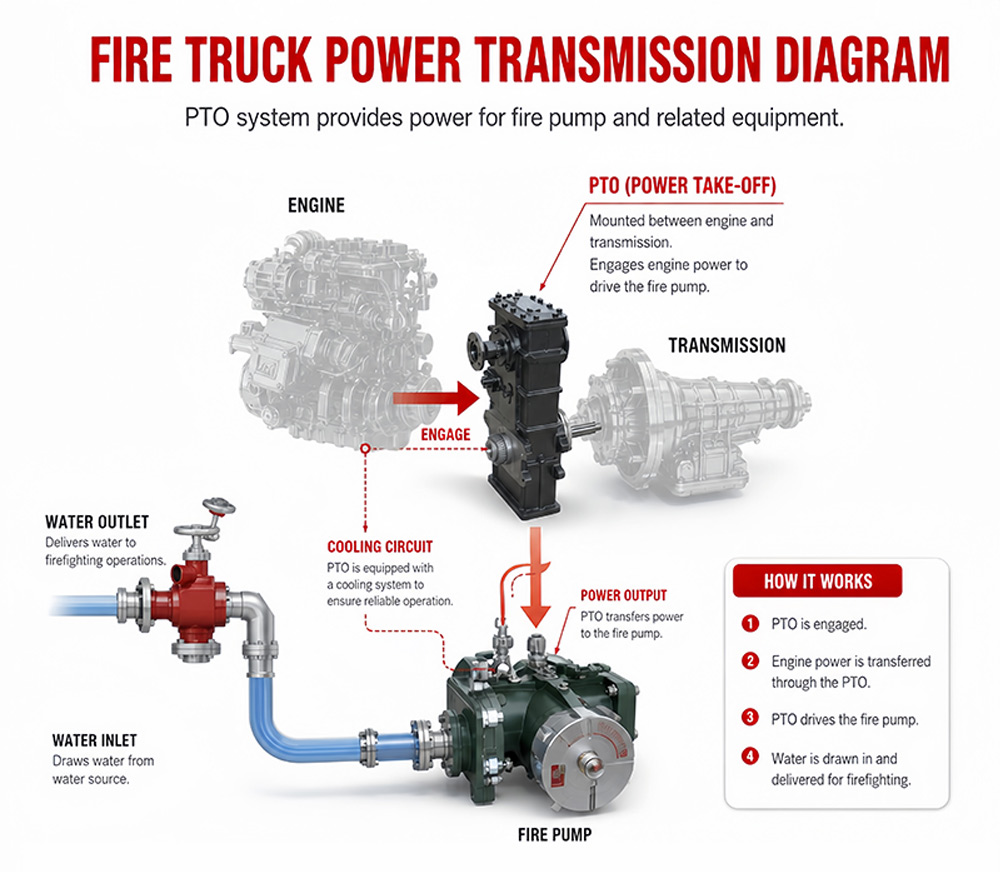

1. Power Transmission Chain

The process follows a clear mechanical transmission chain:

Engine → PTO → Drive Shaft → Fire Pump → Impeller Rotation → Suction → Pressurization → Fire Monitor

2. Why Is Fire Pump Pressure Stable?

3. Why Does Engine RPM Affect Pump Pressure?

① Pump speed is determined by engine RPM

Fire pump impeller speed = Engine RPM × PTO ratio. The PTO ratio is fixed (e.g., 1.75:1), so pump speed changes directly with engine RPM.

Calculation formula:

Engine RPM × PTO ratio = Pump speed (RPM)

② Physical relationship between pressure and speed

The pressure generated by a centrifugal pump is proportional to the square of the impeller speed. This physical law means that small changes in RPM cause significant pressure fluctuations.

• Speed increases → Centrifugal force increases → Discharge pressure rises

• Speed decreases → Centrifugal force decreases → Discharge pressure drops

» VII. Common PTO Faults and Solutions

1. PTO will not engage

• Possible causes: Low air pressure (pneumatic type), faulty solenoid, damaged or stuck cable, interlock conditions not met (parking brake not applied, transmission not in neutral).

• Solutions: Check air system pressure (must be ≥0.6 MPa); test solenoid; inspect cable; confirm parking brake is applied and transmission is in neutral.

2. PTO engages but pump does not work

• Possible causes: PTO clutch failure, broken drive shaft or worn splines, damaged internal gears.

• Solutions: Check PTO clutch engagement; inspect drive shaft for breakage or loose connections; disassemble and inspect internal gears.

3. PTO unusual noise

• Possible causes: Poor gear meshing or wear, worn bearings, insufficient or degraded lubrication, PTO not fully disengaged.

• Solutions: Check gear clearance and tooth wear; inspect bearings; replace with qualified lubricant; confirm PTO is fully disengaged.

4. PTO oil leakage

• Possible causes: Worn or deteriorated seals, cracked housing, loose mounting bolts.

• Solutions: Replace seals (O-rings, oil seals); inspect housing for cracks; tighten mounting bolts.

5. PTO overheating

• Possible causes: Prolonged high-load operation, insufficient or degraded lubricating oil, cooling system failure.

• Solutions: Reduce load or shut down for cooling; replace with qualified lubricant; inspect cooling lines.

6. PTO insufficient power

• Possible causes: Improper PTO ratio selection, engine RPM set too low, clutch slippage.

• Solutions: Confirm PTO ratio matches the fire pump; increase engine RPM to rated operating range; inspect clutch for slippage.

» VIII. FAQ

Q1. What does PTO stand for on a fire truck?

PTO stands for Power Take-Off. It is a mechanical system that transfers engine power from the truck's transmission to the fire pump. In simple terms, PTO allows the fire truck's engine to power the pumping system so it can deliver high-pressure water or foam for firefighting operations without needing a separate engine. It is a critical component in industrial and municipal fire trucks.

Q2. Why do fire trucks need a PTO?

Fire trucks need a PTO because it enables the vehicle's main engine to drive the fire pump efficiently. Without a PTO, the fire pump would require a separate engine, which increases cost, weight, and maintenance complexity. PTO systems provide a compact, reliable, and fuel-efficient way to ensure continuous water or foam supply during firefighting operations.

Q3. Can a fire truck operate without a PTO?

Most modern fire trucks cannot operate their pumping system without a PTO because the PTO is responsible for transferring engine power to the fire pump. However, some specialized fire vehicles may use an independent auxiliary engine to drive the pump. These designs are less common due to higher cost, increased maintenance, and lower efficiency compared to PTO-based systems.

Q4. What is the difference between PTO and a fire pump?

The PTO is a power transmission device, while the fire pump is a water or foam pumping system. The PTO delivers mechanical power from the engine to the pump, and the fire pump converts that power into hydraulic pressure to move water or foam. In short, PTO is the "power source connector," and the fire pump is the "firefighting output device."

Q5. How much power can a fire truck PTO provide?

The power output of a fire truck PTO depends on the vehicle design and transmission system. Typically, PTO systems can provide between 50 kW to over 300 kW of mechanical power. Heavy-duty industrial and airport fire trucks often use high-capacity PTO systems capable of supporting large-flow fire pumps and continuous high-pressure operations.

Q6. What are the different types of fire truck PTOs?

There are several types of fire truck PTO systems, including side-mounted PTO, rear-mounted PTO, split shaft PTO, and full power PTO. Side-mounted PTO is commonly used in standard fire trucks, while split shaft and full power PTO systems are used in industrial and airport fire trucks where higher power output and continuous operation are required.

Q7. How do you maintain a fire truck PTO?

PTO maintenance includes regular inspection of lubrication oil levels, checking for leaks, tightening mounting bolts, and ensuring proper alignment of the drive shaft. Operators should also test engagement and disengagement functions regularly. Preventive maintenance is essential to avoid overheating, mechanical wear, and unexpected failure during emergency operations.

Q8. What causes a fire truck PTO to fail?

Common causes of PTO failure include insufficient lubrication, worn gears, misalignment of the drive shaft, overheating, and improper operation by the driver. Electrical or hydraulic control system failures can also prevent PTO engagement. Regular maintenance and correct operating procedures significantly reduce the risk of PTO failure.

Q9. Which PTO is best for industrial fire trucks?

For industrial fire trucks, the best option is usually a split shaft PTO or full power PTO system. These systems can handle high power output, continuous operation, and large-capacity fire pumps. They are widely used in petrochemical plants, refineries, airports, and large industrial facilities where reliable and long-duration firefighting performance is required.

Q10. What should buyers consider when choosing a fire truck PTO?

Buyers should consider engine power compatibility, required fire pump flow rate, vehicle type, and working environment. It is also important to evaluate PTO durability, cooling performance, maintenance accessibility, and compatibility with the chassis. For export projects, compliance with international standards and local regulations should also be taken into account to ensure approval and operational reliability.

» IX. Key Takeaways

• PTO (Power Take-Off) is the core system that transfers engine power to the fire pump — it determines whether the entire firefighting system can operate properly.

• The fire truck power chain is: Engine → Transmission → PTO → Drive Shaft → Fire Pump → Fire Monitor. Any weak link in this chain affects final firefighting performance.

• The primary function of the PTO is to provide stable, continuous mechanical power output, enabling the fire truck to deliver efficient water or foam supply without requiring a separate engine.

• Different PTO types (Side-mounted, Rear-mounted, Split shaft, Full power) are suited to different fire truck classes. Industrial fire trucks typically prioritize high-power PTO systems.

• PTO performance must match the fire pump flow rate and vehicle chassis, otherwise issues such as insufficient power, unstable pressure, or system overload may occur.

• Regular PTO system maintenance (lubrication, tightening, alignment inspection) is key to ensuring reliable fire truck operation, especially in high-intensity industrial applications.

• When purchasing industrial fire trucks, buyers should not focus solely on price. PTO power, stability, compatibility, and after-sales support are equally critical factors to evaluate.

• For high-risk scenarios such as petrochemical plants, airports, and large industrial parks, Full Power PTO or Split Shaft PTO systems are recommended to ensure continuous operational capability.
